Punching machine is a kind of mechanical equipment that uses pressure to process metallic or non-metallic materials, and is widely used in punching, dropping and molding processes. According to different structures and functions, punching machines can be divided into various types, each type is suitable for different production needs. The following is a categorization of punching machines from the perspectives of drive mode, body structure, and functional features.

1, According to the drive mode classification

(1)Mechanical punching machines

mechanical press through the motor drive flywheel, the use of crankshaft or gear mechanism will be converted into rotary motion of the slide up and down reciprocating motion. It is characterized by fast stamping speed and high efficiency, and is suitable for mass production. Common mechanical punching machines include crankshaft presses and eccentric presses, with the former being suitable for deep stamping and the latter for high-speed blanking.

(2)Hydraulic punching machines

Hydraulic punching machine relies on a hydraulic system to drive the movement of the ram, and the pressure is stable and precisely adjustable. Compared with mechanical presses, it has a longer stroke and is suitable for deep drawing, embossing and other processes that require greater pressure. However, due to the slower response of the hydraulic system, its working speed is usually lower than that of a mechanical press.

(3)Pneumatic punching machines

Pneumatic Punching Machine utilizes compressed air drive, simple structure, easy maintenance, and is suitable for light-load, high-frequency stamping operations, such as punching or assembly of small parts. However, due to the limitation of air pressure, its tonnage is usually small and not suitable for heavy-duty processing.

2, Classified according to the body structure

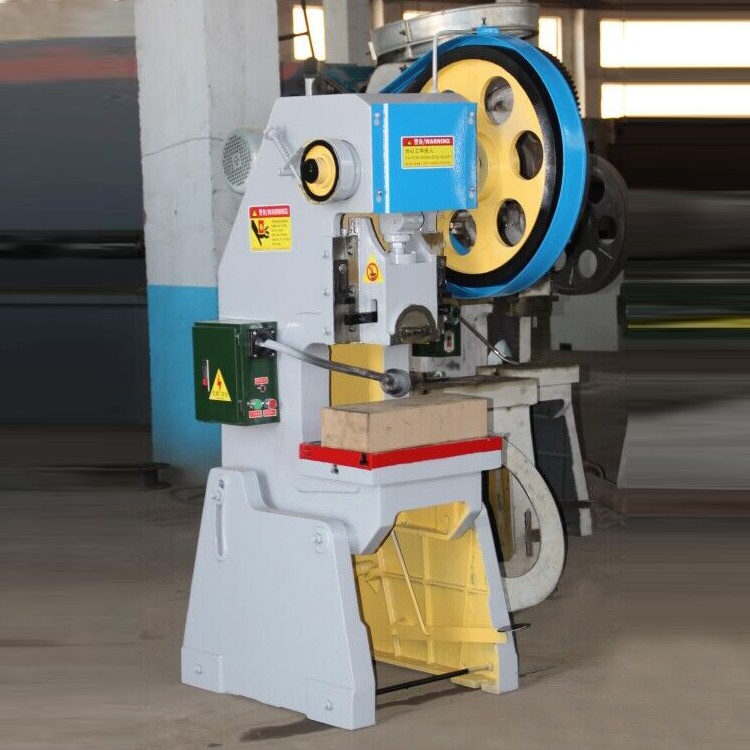

(1)C-type punching machines

The body of C-type punch press is in C-shaped structure, open on three sides, with large operating space, which is convenient for mold installation and material in and out. However, due to the weak rigidity of the machine body, it is usually used for the processing of small and medium-sized parts, such as electronic components, hardware and so on.

(2)Gantry punching machines

Gantry Punch Press has a solid body structure, with columns on both sides supporting the crossbeam, which is rigid and suitable for large-tonnage, high-precision stamping operations, such as automotive sheet metal processing. Its disadvantage is that it covers a large area and is not as flexible as C-type press.

(3)Benchtop punching machines

Benchtop Punch Press is small in size, suitable for laboratory or small workshop use, commonly used for sample making or small batch production. It has a low tonnage, but is easy to move and adjust.

3, According to the functional characteristics of the classification

(1)Ordinary punching machines

Ordinary punching machine only has the basic stamping function, applicable to a single process of processing, such as punching or drop material. Its structure is simple, low cost, suitable for standardized production.

(2)CNC punching machines

CNC punching machine controls the processing through computer program, can automatically change the mold, adjust the punching position, suitable for complex shapes or multi-process processing. Its advantages are high precision, good flexibility, and suitable for small-lot diversified production.

(3)High speed punching machines

High speed punching machines can press hundreds or even thousands of times per minute, and are suitable for mass production of electronic connectors, micro parts, and so on. Its core lies in the high rigidity of the body and precision transmission system to ensure the stability of high-speed operation.

(4)Multi-station punching machines

Multi-station punching machine is equipped with multiple die stations, and the materials enter different stations in sequence through automatic feeding device to complete multiple processes. It reduces manual intervention, improves production efficiency, and is suitable for continuous stamping processing, such as automotive parts manufacturing.

4, According to the application field classification

(1)General-purpose punching machines

General-purpose punch press is suitable for a variety of processing needs, can be replaced by changing the mold to complete different tasks, commonly used in machinery manufacturing, hardware processing and other industries.

(2)Specialized Punching Machines

Specialized punching machines are designed for specific processes, such as automotive covering parts punching machines, silicon steel sheet grooving machines, etc., and their structures are optimized to significantly improve the processing efficiency and quality of specific products.

Punching machines are categorized in various ways, and choosing the right type requires comprehensive consideration of factors such as processing materials, production scale, and precision requirements. Mechanical presses are highly efficient, hydraulic presses are stable in pressure, CNC presses are flexible, and multi-station presses are suitable for continuous production. Understanding the characteristics of different punching machines will help optimize the production process and improve the processing efficiency in practical applications.
