China laser cutting machine for sheet

We are a professional manufacturer of China laser cutting machine for sheet with over 10 years of industry experience.Today,we would like to introduce to you:

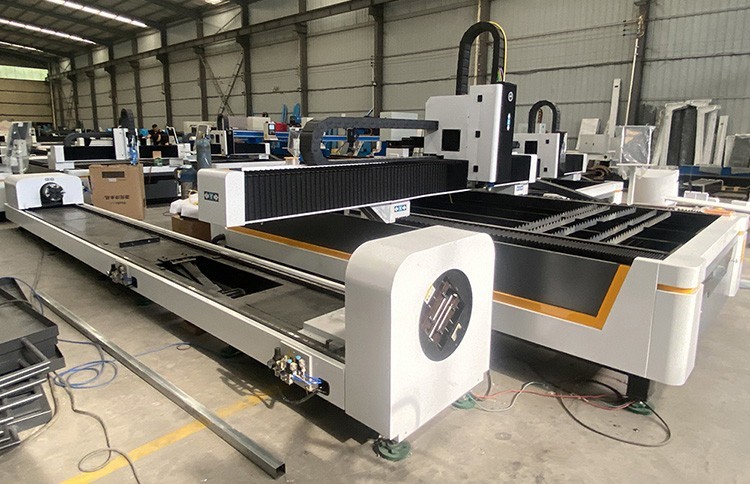

The laser cutting machine for sheet metal can make holes in channel steel.Laser cutting machine is a high-precision processing equipment that processes materials through the thermal energy of a laser beam.It is suitable for cutting all kinds of metal materials,including stainless steel,carbon steel,copper,etc.,and can cut common pipes such as round pipes,square pipes,ellipses,as well as various types of section steel and profiled pipes such as angle steel,channel steel,I-beam,H-beam,etc.

The laser cutting machine for sheet metal has the advantages of high precision,high speed,and no burrs in drilling,which can meet the requirements of high precision and high quality,and will not damage the surface of the material,nor cause deformation and pollution to the material.However,when using a laser cutting machine to make holes in channel steel,the following factors need to be considered:
1.Material thickness:Laser cutting machines for sheet metal are suitable for drilling thin sheets,and may not meet the requirements when the material thickness is large.Generally speaking,laser cutting machines can cut carbon steel with a thickness of up to 36mm(with good steel plate quality and a speed of up to 650mm/min)and stainless steel with a thickness of up to 25mm(with high-pressure nitrogen gas as an auxiliary gas,the speed is about 400mm/min).But when domestic users usually target laser cutting,they will choose specifications of low carbon steel below 25mm and stainless steel below 16mm.
2.Hole size and shape:Laser cutting machines can cut holes with complex shapes,but cutting parameters need to be set and adjusted according to the specific hole size and shape to ensure cutting quality.
3.Equipment performance and parameter settings:The performance and parameter settings of different sheet metal laser cutting machines may vary,and it is necessary to operate and adjust according to the specific equipment model and performance.
In addition,in order to ensure the quality of the holes drilled on the channel steel,the following operating procedures need to be noted:
1.Accurate measurement and marking:Before opening the hole,it is necessary to accurately measure the size and opening position of the channel steel,and make clear markings to ensure the accuracy and positional precision of the opening.
2.Fixed channel steel:During the drilling process,it is necessary to ensure the stability of the channel steel to avoid affecting the quality of the drilling due to vibration or movement.
3.Adjust cutting parameters:Based on the material,thickness,hole size,and shape of the channel steel,adjust the cutting parameters of the plate laser cutting machine,such as laser power,cutting speed,gas flow rate,etc.,to achieve the best cutting effect.
In summary,the laser cutting machine for sheet metal can make holes in channel steel,but it needs to be operated and adjusted according to specific processing requirements and equipment performance.
If you are interested in laser cutting machines for sheet metal,please contact us.
