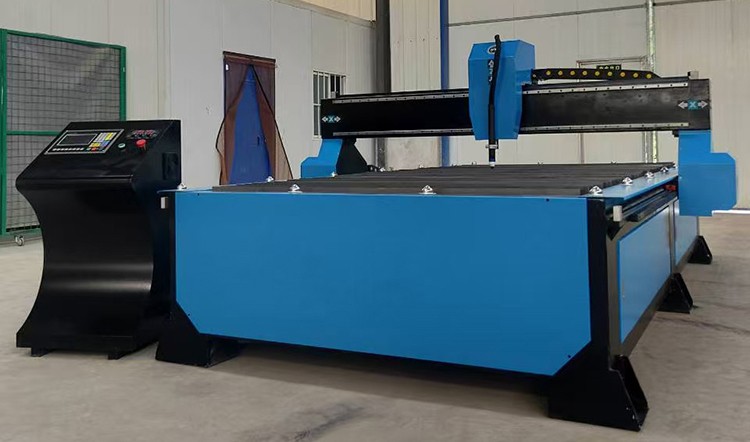

Large Cutting Range Plasma Cutting Machine

We are a professional manufacturer of Large cutting range plasma cutting machine with over 10 years of industry experience. Today, we would like to introduce to you:

The Large cutting range cutting thickness range of a plasma cutting machine is a key performance indicator, which mainly depends on factors such as the power of the plasma cutting machine, the size of the plasma power supply, and the operating environment. Generally speaking, plasma cutting machines can cut a wide range of metal sheet thicknesses.

In common application scenarios,Large cutting range plasma cutting machines can cut steel plates with a thickness range of approximately 1mm to 80mm. However, it should be noted that although there is a theoretical cutting range, the recommended cutting thickness is mainly concentrated in the range of 3mm to 40mm in practice. Within this thickness range, plasma cutting machines can provide high cutting efficiency and good cutting accuracy.

Specifically, for thinner steel plates, such as those below 6mm, high-speed cutting can usually be achieved using a low-power plasma power supply. When the thickness of the steel plate increases to around 14mm, a plasma power supply within 120A may be required. For steel plates around 20mm, a high current plasma power supply of 200A or higher is required. When the thickness of the steel plate reaches 30mm to 40mm, it is recommended to use a high current plasma power supply of 300A to 400A to ensure cutting effect and quality.

However, when the thickness of the steel plate exceeds 40mm, or even reaches 80mm or thicker, the cutting effect of the plasma cutting machine may be affected, and there may be situations where the cutting is not detailed or cannot be effectively cut. In this case, it may be necessary to consider using other more suitable cutting methods, such as waterjet cutting.

In summary, the cutting thickness range of plasma cutting machines is a relatively flexible concept that is influenced by various factors. When choosing a Large cutting range plasma cutting machine, the appropriate equipment model and power should be selected based on specific cutting requirements and plate thickness.
