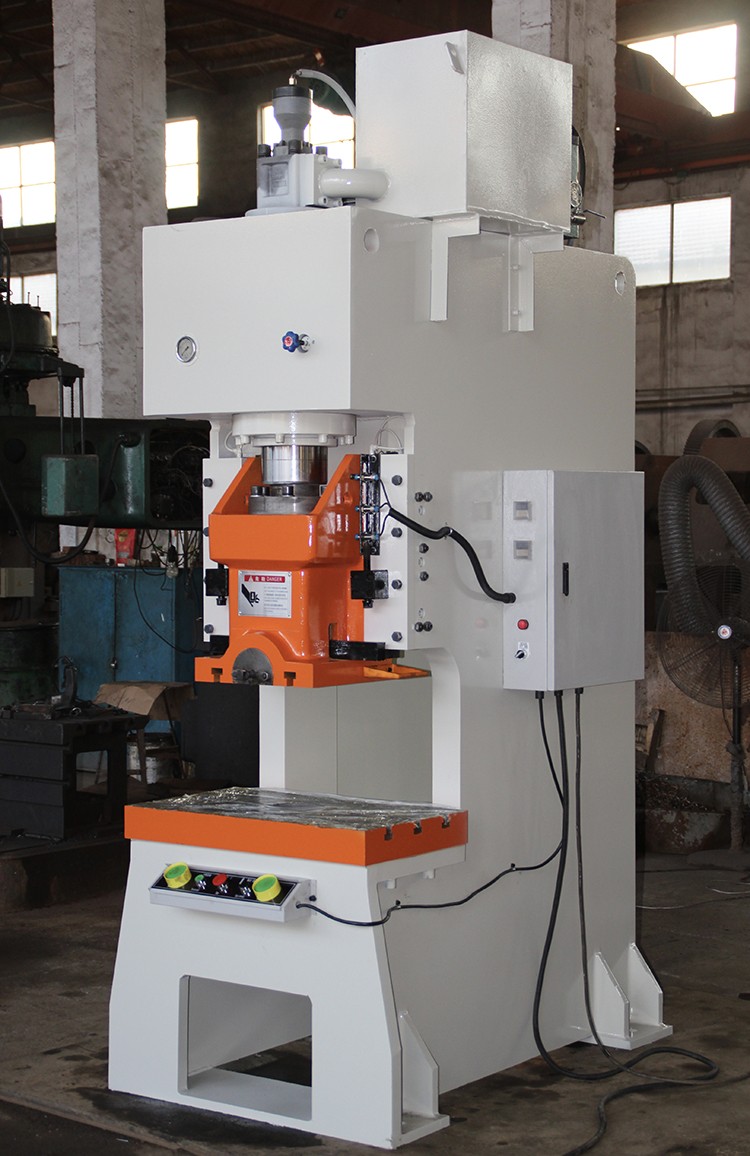

Advanced Hydraulic Punching Machine

We are a professional manufacturer of Advanced hydraulic punching machine with over 10 years of industry experience. Today, we would like to introduce to you:

The working principle of Advanced hydraulic punching machine is based on hydraulic system, which generates compression force through hydraulic cylinder to achieve various stamping operations. The main components of hydraulic punch press include motor, crankshaft, connecting rod mechanism, etc. The motor drives the flywheel, which drives the large gear through the shaft and small gear. The large gear drives the crankshaft through the clutch, and the crankshaft drives the connecting rod to make the slider work. The number of strokes per minute and the motion curve of the slider are fixed and unchanged.

The working process of this product includes the following key steps: firstly, the hydraulic punch flows in the system to form a high-pressure power source; Then, this powerful force is transmitted to the hydraulic cylinder through hydraulic pipelines and control valves; Then, the hydraulic cylinder converts hydraulic power into mechanical energy to drive the slider of the punch press for stamping operations. Due to the smooth and continuous transmission of hydraulic power, the hydraulic punching process can maintain high stability and accuracy.

In addition, the Advanced hydraulic punching machine is equipped with an advanced control system that monitors various parameters during the stamping process in real time, such as pressure, speed, position, etc., by receiving signals from sensors. Once these parameters exceed the preset range, the control system will immediately react and adjust the output of the hydraulic system to ensure the stability and safety of the stamping process.

Obtain detailed machine parameters and quotation.
