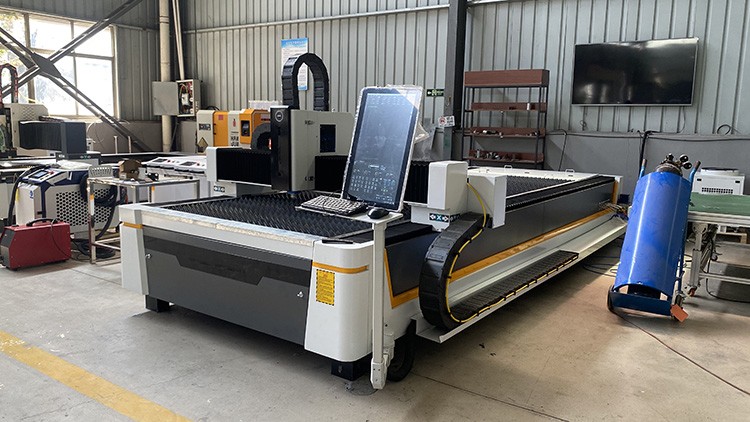

Ultra High Speed Laser Cutting Machine

We are a professional manufacturer of Ultra high speed laser cutting machine with over 10 years of industry experience. Today, we would like to introduce to you:

 Ultra high speed laser cutting machine is a device that uses high-energy laser beams to accurately cut materials, and its cutting accuracy varies depending on the type of equipment, technical level, and application scenarios. Generally speaking, the cutting accuracy of laser cutting machines can reach the following levels:

1、 General accuracy range

1. Vertical deviation: can be controlled within ± 0.1mm.

2. Horizontal deviation: can be controlled within ± 0.5mm.

This level of accuracy is already able to meet the needs of most industrial applications, such as automotive manufacturing, mechanical manufacturing, electronic products, and other fields.

2、 High precision application scenarios

In some fields that require high precision, such as aerospace and standard instruments, the accuracy of laser cutting machines can reach or even exceed the millimeter level. Advanced laser cutting machines can achieve a positioning accuracy of ± 0.05mm under ideal conditions, with a repeat positioning accuracy of up to ± 0.03mm. This high-precision cutting capability gives laser cutting machines an irreplaceable advantage in these fields.

3、 Factors affecting accuracy

Although laser cutting tools have high cutting accuracy, their accuracy may still be affected by various factors during actual use, including but not limited to the following:

1. Stability of laser output: Laser cutting is achieved by the aggregation of laser energy, which produces a spot. The stability of the spot will affect whether the cutting seam size is uniform.

2. Propagation and correction of optical path: The light spot generated by the laser is an ellipse, and the correction of true roundness depends on the optical lens group. The true roundness of the light spot will affect whether the X-Y seam is consistent.

3. Influence of transmission mechanism: The transmission mechanism is one of the key factors affecting the accuracy of laser cutting. The selection of belt, screw, and screw module types will have a qualitative impact on the mechanical accuracy of laser cutting machines.

In addition, factors such as laser power, focal position, selection of auxiliary gas, and optimization of cutting path can also affect the accuracy of laser cutting machines.

In summary, the cutting accuracy of Ultra high speed laser cutting machines varies depending on the type of equipment and application scenarios. In practical applications, it is necessary to choose a suitable laser cutting machine according to specific needs and take corresponding measures to optimize cutting parameters and process conditions, in order to achieve higher cutting accuracy and efficiency.

Obtain detailed machine parameters and quotation.
