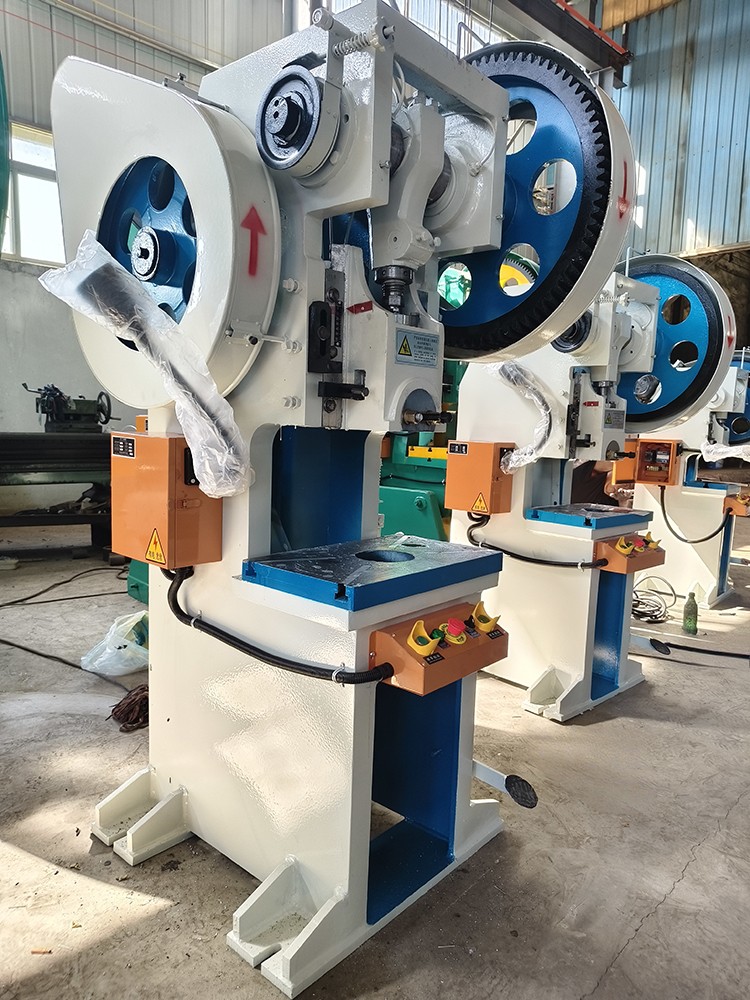

High-accuracy Heavy Duty Type Punching Machine

We are a professional manufacturer of High-accuracy Heavy Duty Type Punching Machine with over 10 years of industry experience. Today, we would like to introduce to you:

The working principle of a High-accuracy Heavy Duty Type Punching Machine is mainly to convert circular motion into linear motion by driving components such as flywheels, gears, and connecting rods through motors, thereby achieving various deformations. Specifically, the mechanical punch press is driven by a motor through a belt to drive a large flywheel. The flywheel drives the large gear through a shaft and a small gear, which in turn drives the crankshaft through a clutch. The crankshaft drives the connecting rod to move the slider up and down. The number of strokes per minute and the motion curve of the slider are fixed and unchanged.

High-accuracy Heavy Duty Type Punching Machine have a wide range of applications in industrial production, mainly used for cutting, punching, stretching and shaping raw materials. They use compressed air provided by a compressed air pump to enter the cylinder through an electromagnetic valve, drive the piston to drive it to the spindle, and cause the spindle to move downward, thereby forming an impact force and causing the workpiece to deform as specified in the mold.

This product has two mechanisms, one is ball shaped and the other is pin shaped, which convert circular motion into linear motion of the slider through these two mechanisms. Regular maintenance and upkeep are crucial for maintaining the accuracy and production efficiency of mechanical punching machines. This includes checking the lubrication system, cleaning the workbench and mold, inspecting the electrical control system, etc.

If you need or are interested in High-accuracy Heavy Duty Type Punching Machine, please feel free to contact us and we will provide a detailed introduction and quotation for suitable machines.
