Hght Quality Laser Cutting Machine

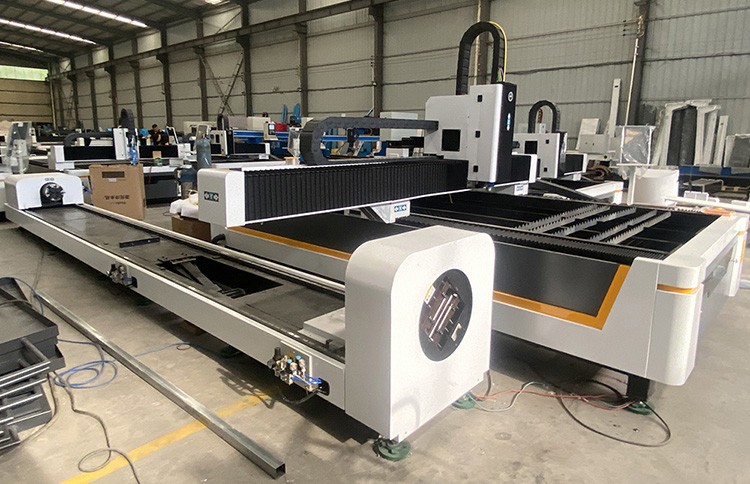

We are a professional manufacturer of plate tube integrated Hght Quality laser cutting machine with over 10 years of industry experience. Today, we would like to introduce to you:

The chuck of the plate tube integrated Hght Quality laser cutting machine is an important component. For the selection, inspection, and maintenance of the chuck, the following are some key points.

一、 Chuck type
Plate tube integrated laser cutting machines are usually equipped with multiple types of chucks to meet the clamping needs of different pipe materials. Common types of chucks include pneumatic chucks, electric chucks, and CNC chucks.
二、 Chuck performance requirements
When choosing a chuck, it is necessary to consider its performance requirements, including clamping force, repeated clamping accuracy, adaptability, and pressure control.
1. Supporting force: Sufficient supporting force can ensure the stability of the pipe during rotation and rapid movement, thereby ensuring the accuracy of cutting.
2. Repeated clamping accuracy: The chuck of the plate tube integrated laser cutting machine should be able to ensure repeated clamping accuracy, ensuring that the accuracy of the clamped pipe is within a controllable range each time.
3. Adaptability: The chuck has strong adaptability and can hold pipes of different sizes and shapes to adapt to changing production needs.
4. Pressure control: The automatic pressure adjustment function is suitable for cutting thin-walled pipes, and can automatically adjust the pressure and store it in the database, making it more convenient and accurate to use. Manual pressure adjustment requires manual adjustment of air pressure to control the tightness of the clamping, which is relatively difficult to operate and has poor accuracy.
三、 Chuck inspection and maintenance
1. Dust removal: Use a high-pressure air gun or similar tool to clean the chuck body and slide surface to ensure the accuracy of the chuck.
2. Lubrication: Apply molybdenum disulfide grease or other suitable lubricating oil at least once a day, and inject the grease into the chuck oil nozzle until it overflows from the clamp surface or chuck inner hole.
3. Check for wear and tear: Remove the chuck jaws for cleaning every 6 months, check for any cracks or wear on each component, and replace any severely worn parts immediately.
4. Rust prevention: Use cutting oil with good rust prevention effect to perform rust prevention treatment on the chuck to prevent rusting and reduce clamping force.
四、 Precautions

When selecting a chuck, it should be ensured that it matches the processing material and process requirements. Regularly maintain and upkeep the chuck of the plate tube integrated laser cutting machine, following the manufacturer's instruction manual for operation. Pay attention to the gas supply pressure and lubrication of the chuck to avoid early wear caused by improper use. For the processing of special workpieces, consider using customized fixtures or jigs to protect the chuck from damage. Train operators to understand the basic working principles and operating procedures of chucks, improve operational skills and safety awareness.

In summary, for the chuck of the plate tube integrated Hght Quality laser cutting machine, it is necessary to comprehensively consider its type, performance requirements, inspection and maintenance to ensure its normal operation and extend its service life, thereby meeting production needs and improving economic benefits.

If you need or are interested in the plate tube integrated Hght Quality laser cutting machine please feel free to contact us, and we will provide detailed introduction and quotation of suitable machines.
