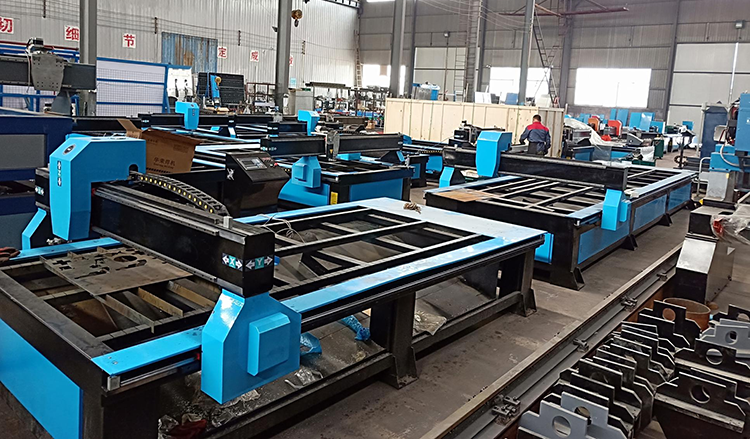

Ultra Flat Incision Plasma Cutting Machine

We are a professional manufacturer of Ultra flat incision plasma cutting machine for sheet metal, with over 10 years of industry experience. Today, we would like to introduce to you:

Ultra flat incision plasma cutting machine is a widely used mechanical equipment in recent years, mainly used for processing metal materials, especially in cutting stainless steel and other metals.

1、 Machine tool
The machine tool is the main part of the plasma cutting machine for sheet metal, including the crossbeam guide rail, gear rack transmission, reducer, servo motor, air system, electrical control cabinet, etc. The automatic height adjustment system, ignition system, and cooling system can be selected according to the usage needs.
2、 Numerical Control System
The numerical control system is the command center of the plasma cutting machine for sheet metal, with the core consisting of an industrial computer and a set of specialized control software for numerical control cutting. The main control objects of a numerical control system are mechanical quantities such as position, angle, and speed, as well as physical quantities such as temperature, pressure, and flow rate. Its control methods can be divided into two categories: data processing control and temporal logic control.
3、 Servo system
The servo system is the electrical transmission link between the numerical control system and the machine tool body, mainly composed of servo motors, drive control systems, and position detection and feedback devices. The servo motor is the executing component of the system, and the drive control system of the plasma cutting machine for sheet metal is the power source of the servo motor. The command signal issued by the numerical control system is compared with the position feedback signal and used as a displacement command. After being amplified by the power of the driving system, the electric motor is driven to operate, and the plasma power supply frame is driven to move through the mechanical transmission device.
4、 Auxiliary control device
The main function of the auxiliary control device of the plasma cutting machine for sheet metal is to receive the switch command signal output by the numerical control device, compile, logically judge and move it, and then drive the corresponding electrical appliances after power amplification, driving the mechanical, hydraulic, pneumatic and other auxiliary devices of the machine tool to complete the switch action specified by the command.
5、 Plasma power supply
A plasma power supply is equivalent to a cutting tool in a CNC machine tool. It uses compressed air as the working gas and a high-temperature and high-speed plasma arc as the heat source to locally melt the metal being cut by the plate plasma cutting machine. At the same time, it uses high-speed airflow to blow away the melted metal, forming a narrow cutting gap and achieving the purpose of cutting.
6、 Nesting software

Nesting software is an important tool for cutting machines, which determines whether the plasma cutting machine for sheet metal can be effectively used and the cutting efficiency. The main function of nesting software is to centrally optimize nesting of parts and steel plates, especially for whole board optimization nesting and surplus material optimization nesting, in order to improve the utilization rate of materials. At the same time, the nesting software also has features such as programming and cutting efficiency, automatic manual interactive fast nesting, and automatic programming, which can save time.

In summary, the Ultra flat incision plasma cutting machine for sheet metal is a highly integrated system, where various parts work together to complete the cutting task of metal materials.

If you are interested in Ultra flat incision plasma cutting machine for sheet metal, please contact us.
