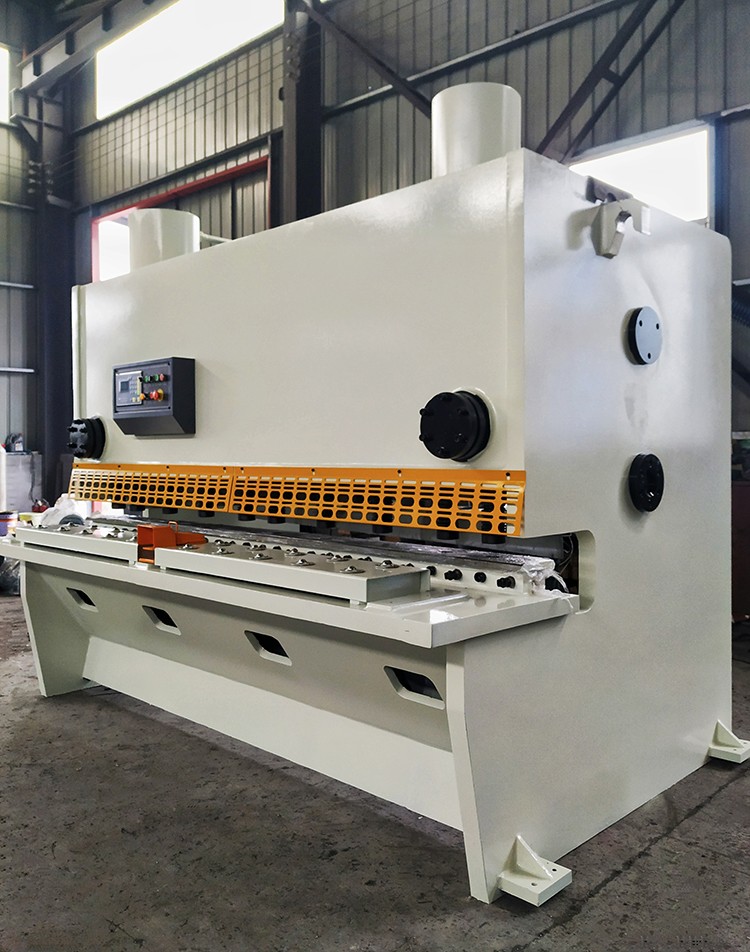

Hydraulic gate shearing machine

We are a professional manufacturer of CNC Hydraulic gate shearing machines with over 10 years of industry experience. Today, we would like to introduce to you:

As an effective iron plate cutting tool, the parameter settings of a CNC Hydraulic gate have a significant impact on work efficiency and cutting quality. The following are the specific adjustment steps:

1. Check the power supply and control system:

Ensure that the CNC shearing machine is powered on, all indicator lights are on properly, and the display screen is functioning properly. If there is a problem with the power supply or control system, it is necessary to repair or replace the relevant components in a timely manner.

2. Enter the parameter setting interface:

The parameter setting interface can usually be accessed through the device's control panel or computer software. Some CNC shearing machines may require holding down the programming key for about 3 seconds until a flashing "P" appears in the program bar. Then, select the parameter to be modified using the "+" and "-" keys, enter the value, and press the ENT key to confirm.

3. Set key parameters:

According to actual needs, adjust parameters such as cutting speed, cutting angle, cutting force, mode setting, positioning accuracy, setback length, transmission coefficient, deceleration distance, positioning time, and slow speed one by one. It is necessary to first understand the meaning and function of each parameter, for example, the cutting speed determines the working efficiency of the CNC shearing machine, while the cutting angle affects the cutting quality. After the parameter settings are completed, it is usually necessary to turn off the power and then turn it back on to save the data.

4. Adjust the blade clearance:

The adjustment of blade clearance is crucial for cutting quality and blade life. When adjusting the gap, loosen the locking screw and turn the handle to the desired scale value before locking the screw. The selection of blade clearance should be based on the material and thickness of the sheared plate. For example, for low carbon steel with a tensile strength of 375~460MPa, the clearance can be selected at 10% of the thickness of the sheared plate.

5. Rear material adjustment:

The cutting size accuracy of CNC shearing machine is closely related to the position of the rear stopper. Enter the rear stop material data through the CNC panel, and then press the automatic and start buttons to automatically place the rear stop material.

6. Practical operation testing:

After adjusting the parameters, actual operational testing is required to verify the effectiveness of the parameter adjustments. In practical operation, it is necessary to pay attention to the operation status and cutting quality of the equipment. If any abnormal situations or poor cutting quality are found, it is necessary to adjust the parameters or check whether the equipment has faults in a timely manner.

7. Daily maintenance and upkeep:

In addition to the above parameter adjustment steps, it is also necessary to pay attention to daily maintenance and upkeep work. For example, regularly cleaning the surface and internal components of the CNC shearing machine, checking the lubrication of the equipment, and timely replacing worn parts.

Please note that before making any adjustments to the CNC Hydraulic gate, carefully read the operating manual and follow relevant safety regulations to ensure that adjustments are made while the machine is in shutdown or safe mode to avoid accidents. In short, adjusting the parameters of a CNC shearing machine is a process that requires careful and patient attention to detail. We need to fully understand the meaning and function of each parameter, follow certain adjustment principles and methods, and conduct practical operational testing and daily maintenance work. Only in this way can we ensure that the CNC shearing machine can operate normally and achieve good working results.

If you are interested in CNC Hydraulic gate, please contact us.
