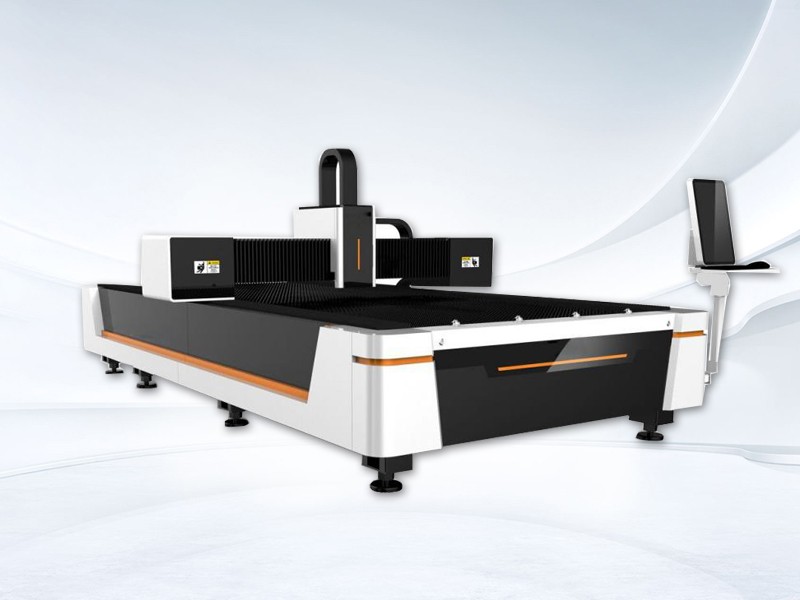

1530 2000W fiber laser cutting machine for Metal Stainless Steel Carbon Steel High Cutting Precision

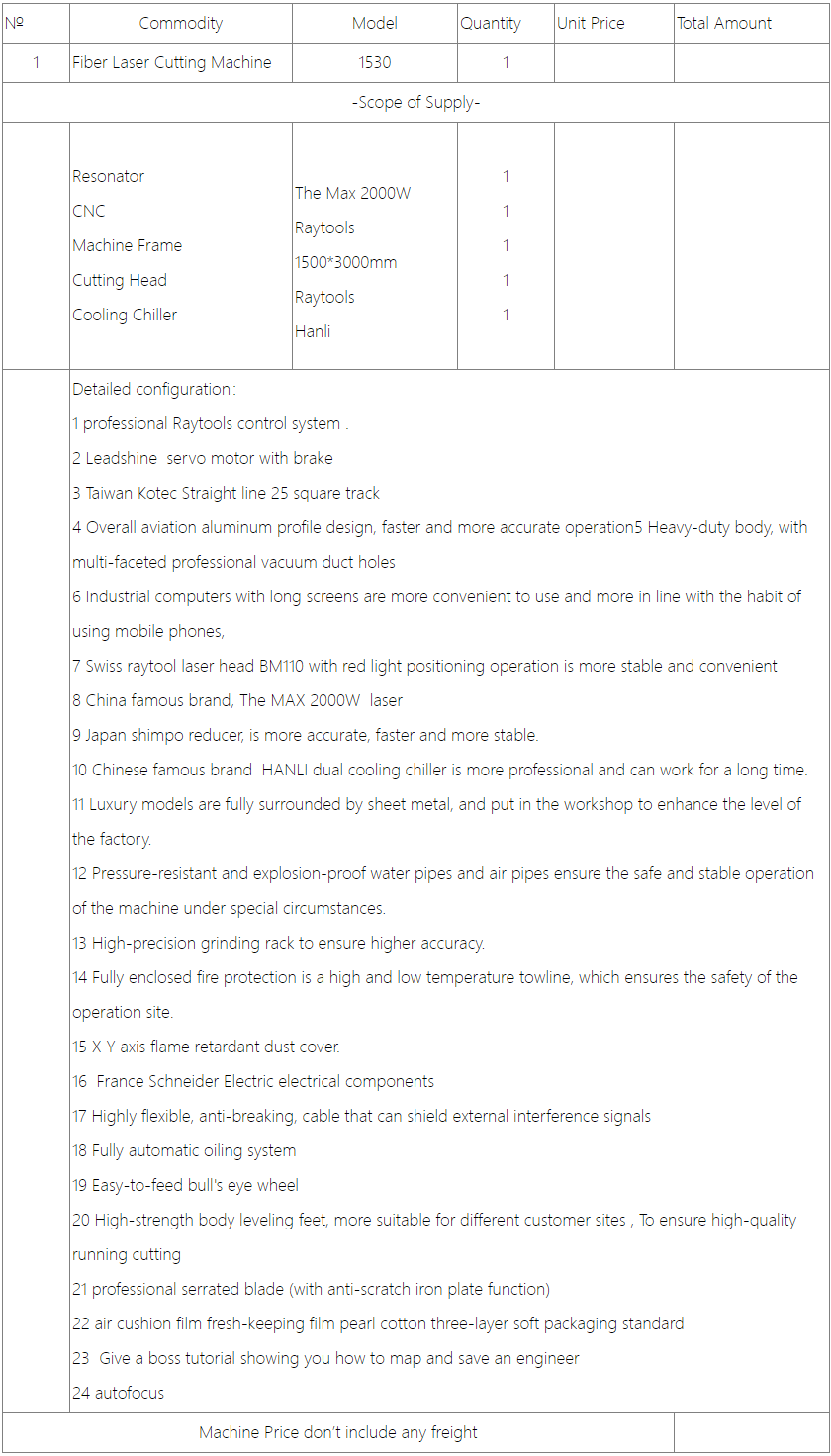

We are pleased to present Laser Cutting Machine (Fiber), Model of 1530 with below details:

We are looking forward to serve you and please don’t hesitate to contact us for more information.

Sincerely yours,

1530   2000W Fiber  cutting machine

1530  2000W

Specification

￭Tube welding machine base.

￭ The Max 2000w laser source.

￭ Raytools Laser head BM110

￭ Raytools  controller.

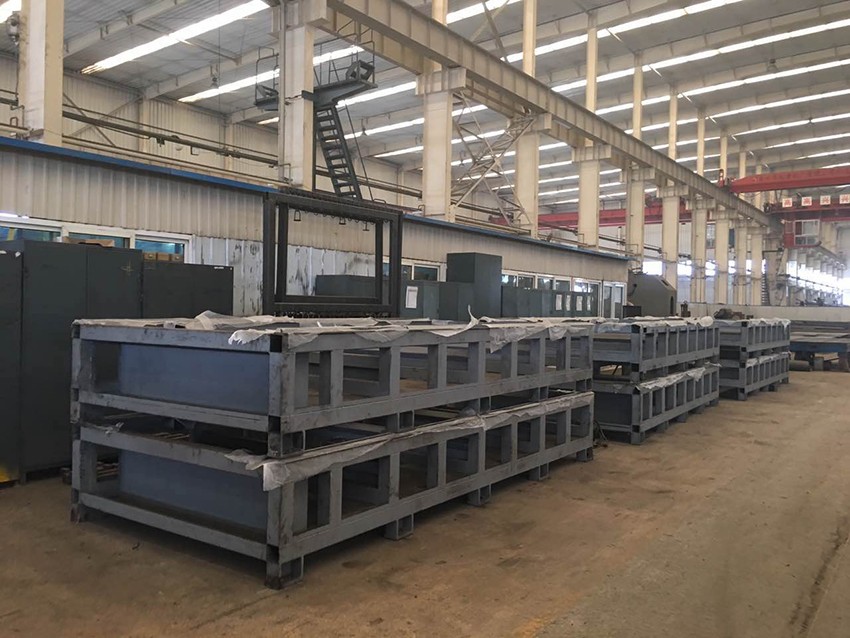

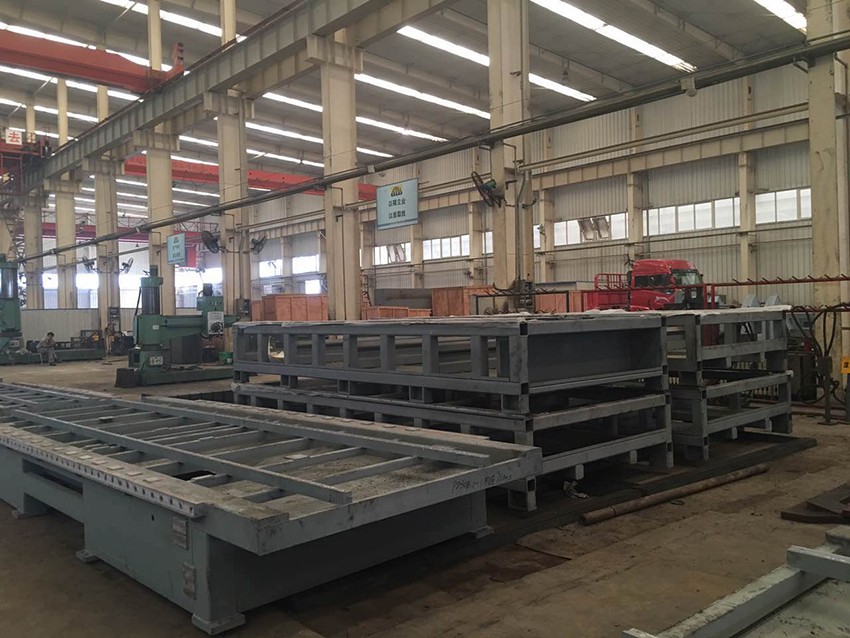

Machine base introduction

￭  Tube welding.

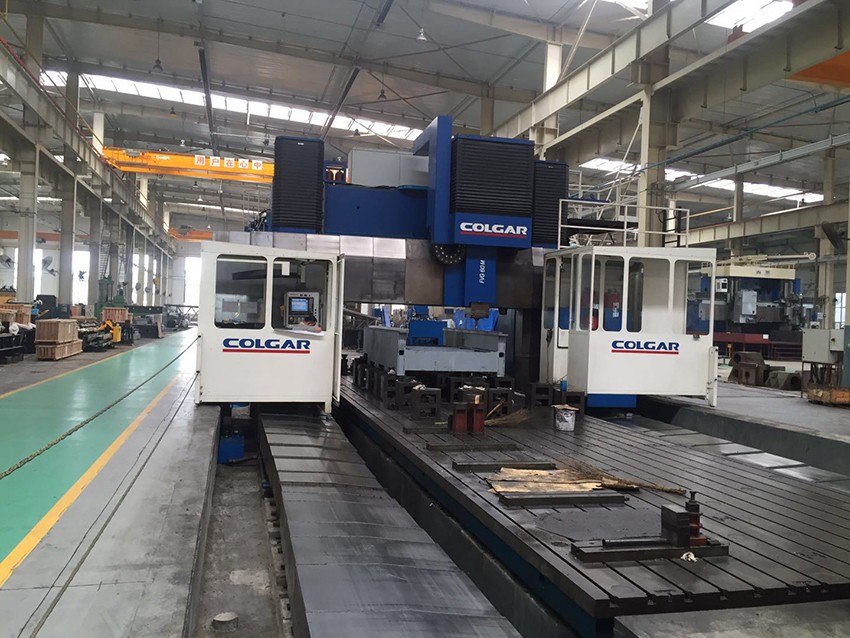

￭  Italian COLGAR machine milling boring.

￭  Machine weight 3.5tons.

￭  Machine error accuracy 0.02mm.

￭  With 24 hours quenching process.

￭ Support  max moving speed 60m/min.

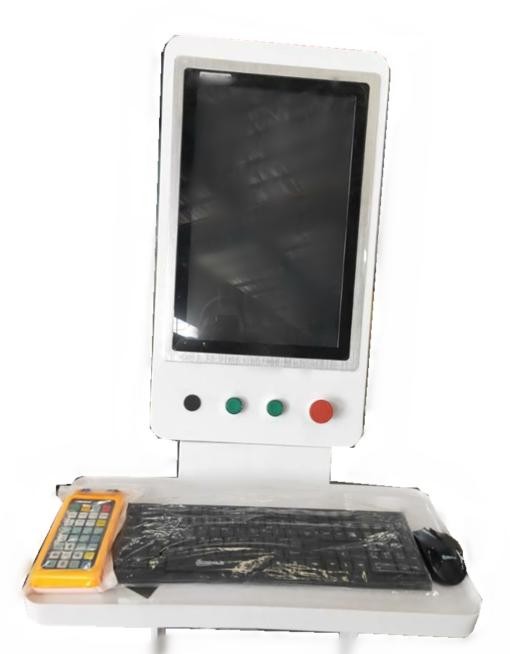

Control Raytools

Raytools software is a three-dimensional  cutting software, you can directly read UG, SolidWorks software export IGS format files, automatically extract the section to be cut and the track to be cut, without manual editing and selection.

Fast and convenient automatic leveling and center correction function eliminates the cumbersome manual operation, improve the accuracy of cutting; automatically according to the size of the pipe to calculate the pipe rotation and single-sided cutting head when the lifting height, to avoid cutting the process of collision.

But also greatly reduces the single-sided cutting when the unnecessary lift, save time.

Hanli  Water Chiller 2000W

When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.

Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.

Water in chiller should be pure water.(one week change one time)

Filter (3 month change one time)

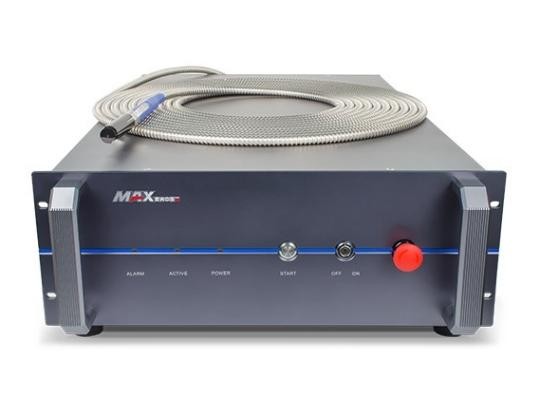

The Max 2000W laser source

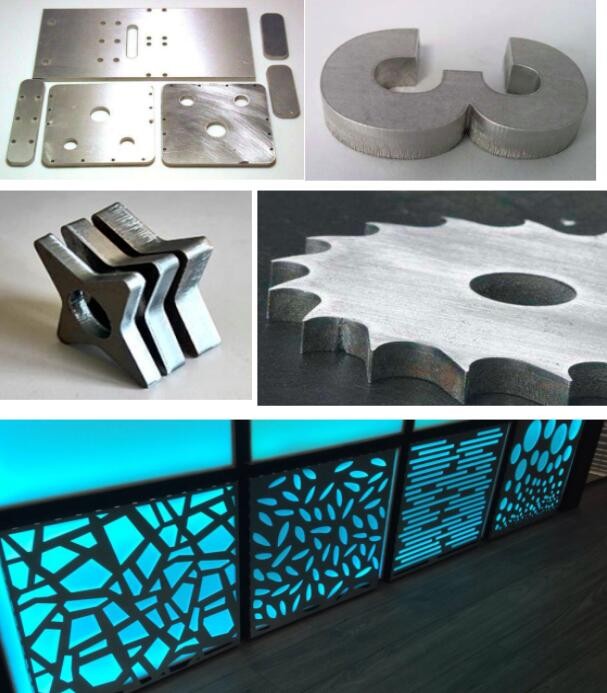

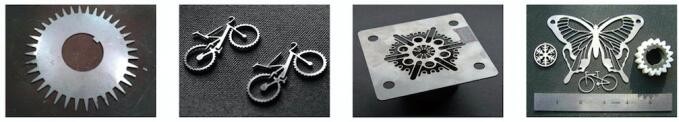

The Max laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.

￭  High electro-optical conversion efficiency

￭  Altitude stress-resisting capacity

￭  Sheet cutting efficiency

￭  Customized output fiber length

￭  Maintenance-free operation

￭  Wide modulation frequency range

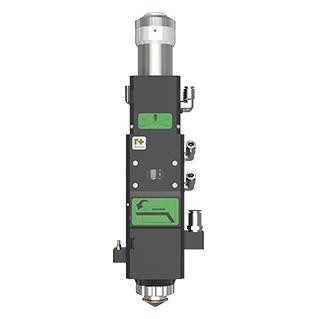

Raytools BM110-Laser Cutting head

The BM110 series Laser Cutting Heads are released based on the BM110 from Switzerland RAYTOOLS AG in 2017, which are suitable for medium and high power fiber lasers in industrial applications. Compared to the BM110 series, the upgraded version of BM110 series in dust-proof design and customer experience are made a comprehensive optimization. As we all know, collimation lens is very likely to be contaminated when inserting or removing optical fibers，so the BM110 series are avoided this risk by adding an top protective window to the collimation assembly. At the same time, the bottom protective window structure is also fully upgraded, we add a dust cover on it. Double protection design enhance the user experience in the replacement of protective window greatly, and the lens contamination risk is almost zero.

Features

• Optimized optical configuration, smooth and  efficient airflow design;

• Comprehensive upgrade of the dust-proof design, Double protection, the risk of contamination of the lens is almost zero;

• The laser head body is increased anti-collision function;

• Turntable focus adjustment and can be manually corrected, fine and flexible adjustment, adjustable range is 20mm,accuracy is 0.05mm;

• With a variety of optical interfaces, can be adapted with a variety of fiber lasers;

• Collimation lens, focusing lens and nozzle are all have cooling structures;

Specifications

• Power Rating ----≤4KW

• Clear Aperture ----28mm

• Cover Glass ----φ24.9mm*1.5mm(Top);φ27.9mm*4.1mm(Bottom)

• Assist gas Pressure ----≤25bar

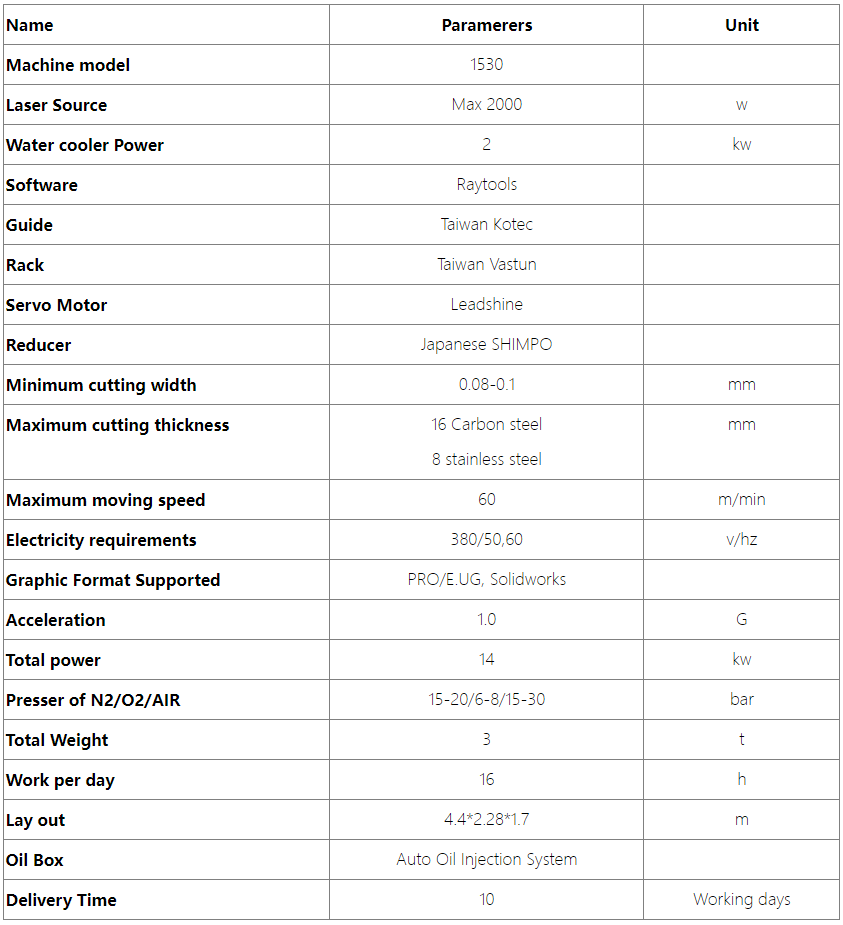

Technical Parameter

Maintainance

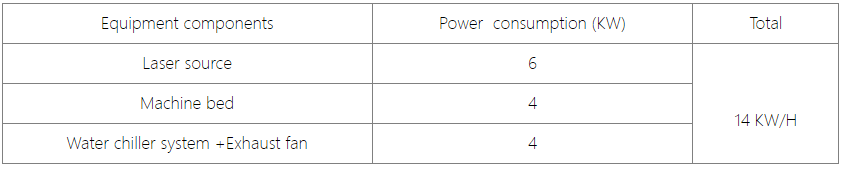

Electrical power cost

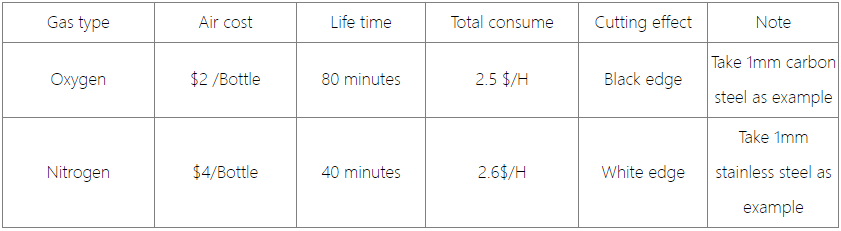

Auxiliary gas cost

Note: The number above is Chinese cost. Just for your reference. By the way, if you use nitrogen a lot, you can consider it in can. So it just cost quarter of the total. Also, you could save the time to change bottles

Lay out :4.4*2.3*1.7m

Machine loading in 1 20GP

After-sale Service

Warranty: 2 years for the whole machine, laser device 12 months, chiller, Laser head,  12 months, lens/mirror/nozzle without warranty.
